English
SPECIFICATIONS
| Model | ESSMP4OST | ESSMP55ST | ESSMP75ST | ESSMP9OST | |||||||
| Lowest Pump Starting Level | 35 mm | ||||||||||
| Lowest Pump sucking Level | l mm | ||||||||||
| Max.Solid Handling | 5 mm | ||||||||||
| Volts | 120V/220V(customizable) | ||||||||||
| Hz | 50Hz/60Hz | ||||||||||
| Mode Function | Tethered Float Switch | ||||||||||
| Discharge Size | I"GI"-1/4G1-1/4” | ||||||||||
| Rated Power | 400 W | 550 W | 750 W | 900w | |||||||
| Max.Head | 7.3m | 8m | 8.3 m | 9.4m | |||||||
| Max.Flow | 65001/h | 85001/h | 95001/ | 110001/h | |||||||
| Max.Pressure | 0.73 bar | 0.8 bar | 0.83 bar | 0.94 bar | |||||||

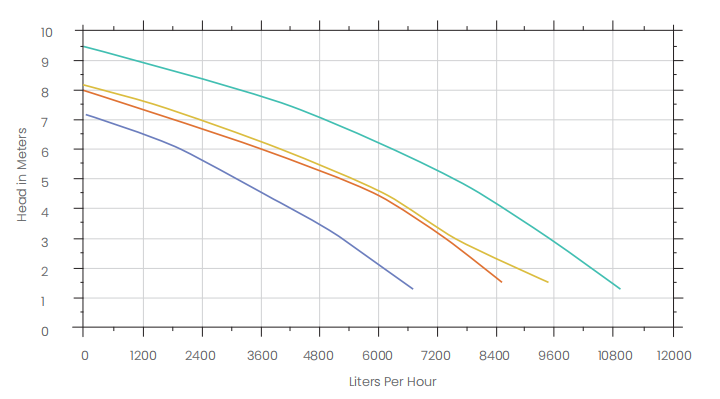

PERFORMANCE
| Model | Discharge Height(m) | 1.5 | 3 | 4.5 | 6 | 7.3 | |||||
| ESSMP4OST | Liters Per Minute | 108 | 88 | 67 | 33 | 0 | |||||
| Liters Per Hour | 6500 | 5300 | 4000 | 2000 | 0 | ||||||
| Model | Discharge Height(m) | 1.5 | 3 | 4.5 | 6 | 7.3 | 8 | ||||
| ESSMP55ST | Liters Per Minute | 142 | 123 | 100 | 60 | 17 | 0 | ||||
| Liters Per Hour | 8500 | 7400 | 6000 | 3600 | 1000 | 0 | |||||
| Model | Discharge Height(m) | 1.5 | 3 | 4.5 | 6 | 7.3 | 8.3 | ||||
| ESSMP75ST | Liters Per Minute | 158 | 128 | 103 | 67 | 25 | 0 | ||||
| Liters Per Hour | 9500 | 7700 | 6200 | 4000 | 1500 | 0 | |||||
| Model | Discharge Height(m) | 1.5 | 3 | 4.5 | 6 | 7.3 | 9.4 | ||||
| ESSMP9OST | Liters Per Minute | 183 | 158 | 133 | 103 | 70 | 0 | ||||
| Liters Per Hour | 11000 | 9500 | 8000 | 6200 | 4200 | 0 | |||||
