FEATURES

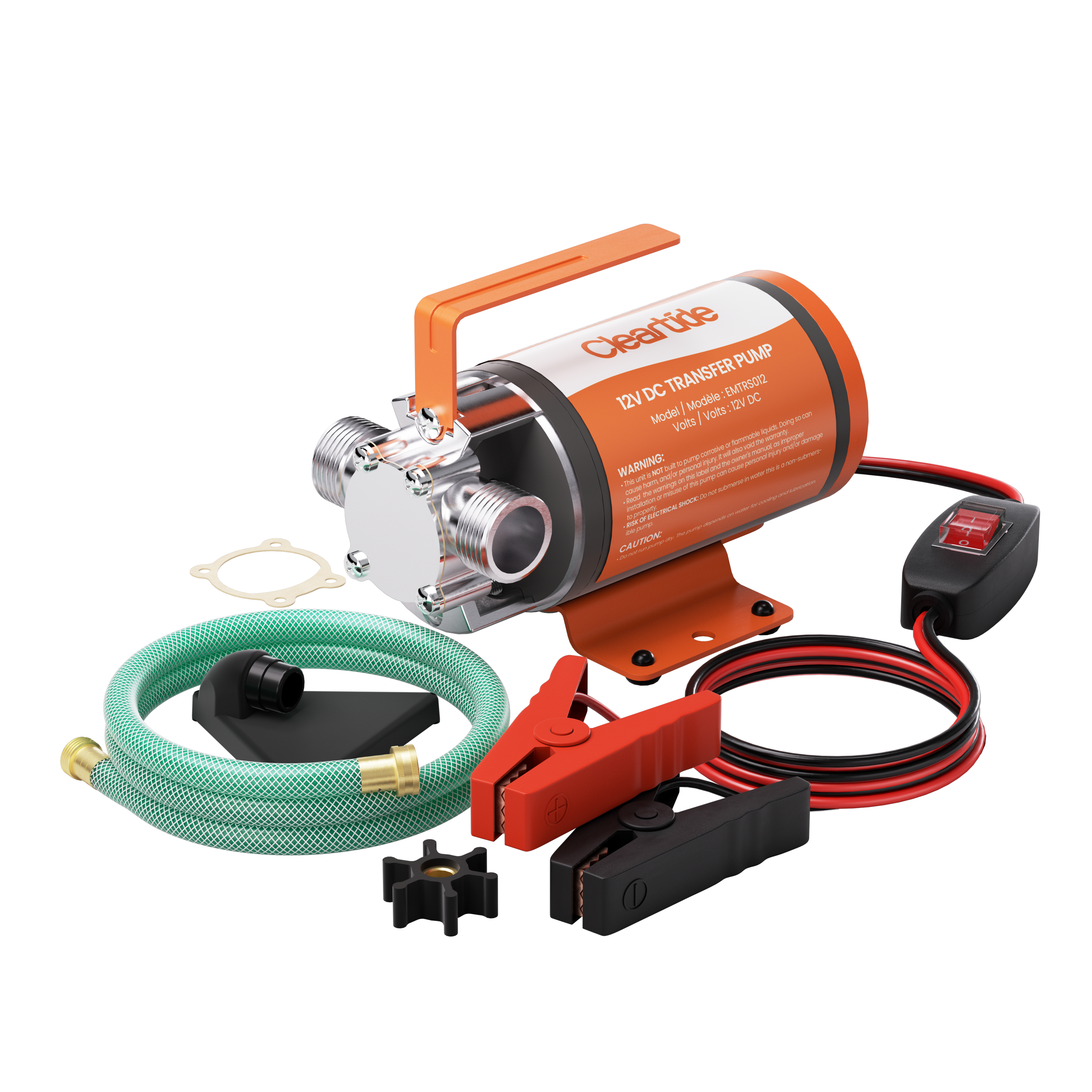

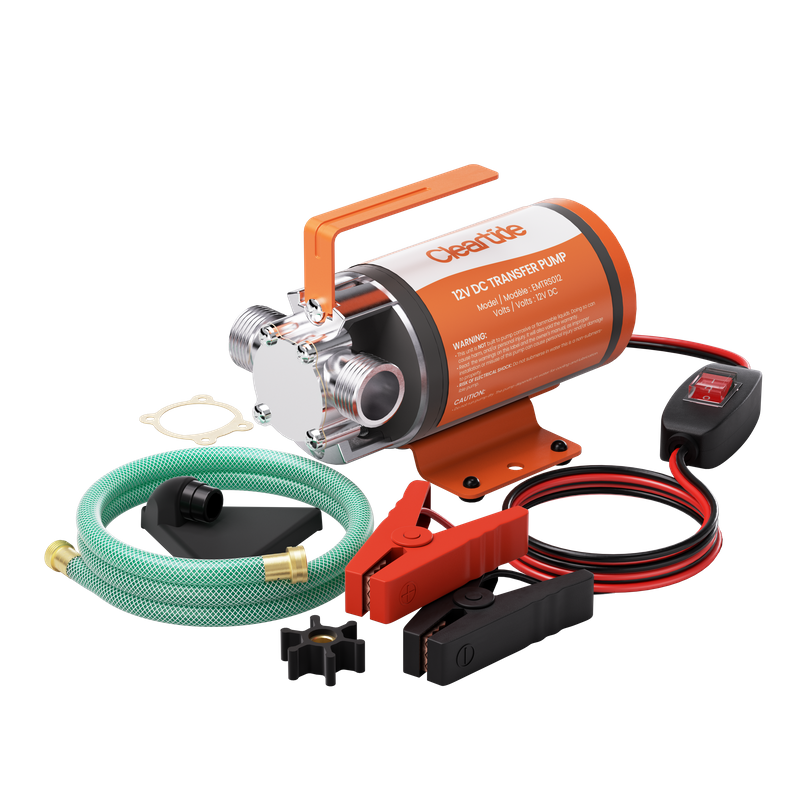

EDPM0312
Powerful Performance
100%copper windings.Max flow 330 GPH,Max head 67 Ft, 40%higher lift compared to rivals.
Reliable Plumbing
Brass 3/4"GHT adapters for leak-proof and reliable connections.6FT anti-tangling suction hose for easy
handling.

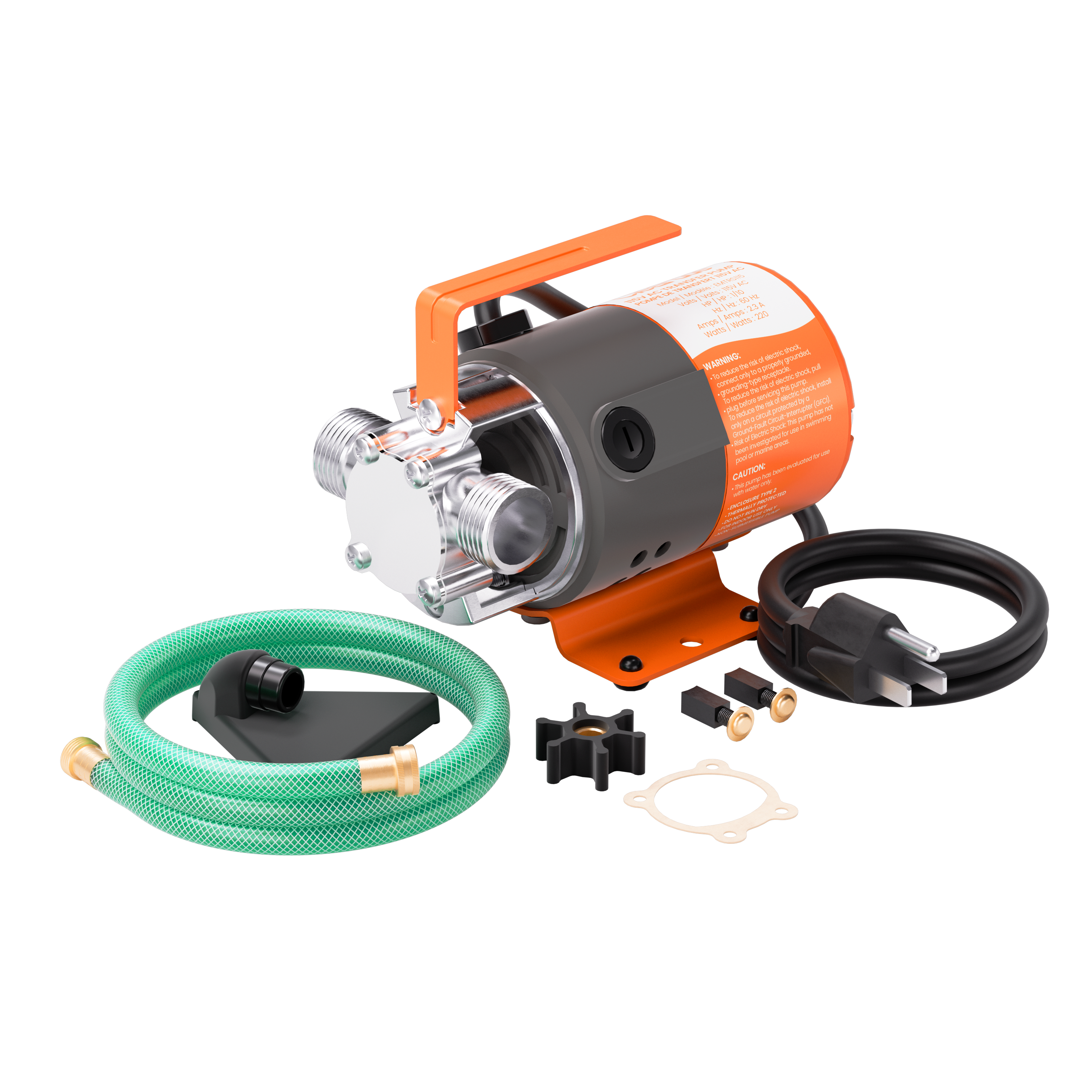

EDPM03115
Powerful Performance
100%copper windings +US-made thermal over-load protector.Max.flow 380 GPH,Max.head 60 Ft,40% higher lift compared to rivals.
Reliable Plumbing
Brass 3/4 GHT adapters for leak-proof and reliable connections.6FT anti-tangling suction hose for easy handling.
| Model | EMTRSO12 | EMTRS115 | |||||||||
| Max.Liquid Temperature | 48℃ | ||||||||||
| Suction Size | 3/4”GHT | ||||||||||
| Discharge Size | 3/4”GHT | ||||||||||
| Volts | 12VDC/15VAC(customizable) | ||||||||||
| Amps | 15 A | 2.3 A | |||||||||
| Max.Flow | 1249 LPH | 1438 LPH | |||||||||
| Max.Head | 20.4m | 18.3 m | |||||||||
| Pump Dimension | 159.4×103.5×113.3 mm | 163.4×103.5×116 mm | |||||||||
| Product Weight | 257kg | 252 kg | |||||||||
