FEATURES
Innovative brushless motor technology for efficiency and durability
Providing higher energy efficiency and longer lifespan,reducing maintenance costs ensuring precise and reliable operation.
Dynamically adjusting power output to sustain water supply in over-heating conditions
Automatically lowering power when the unit is running at high temperatures,gradually restoring it as the temperature drops ensuring continuous operation.
Self-diagnosis in water less protection
Automatically stop running when it detects a dry pipeline or water source, preventing dry running and motor burn out.
IPx5 water proof ratingmeets outdoor use needs
Enhanced sealing ensures reliable operation even in outdoor rainy conditions.

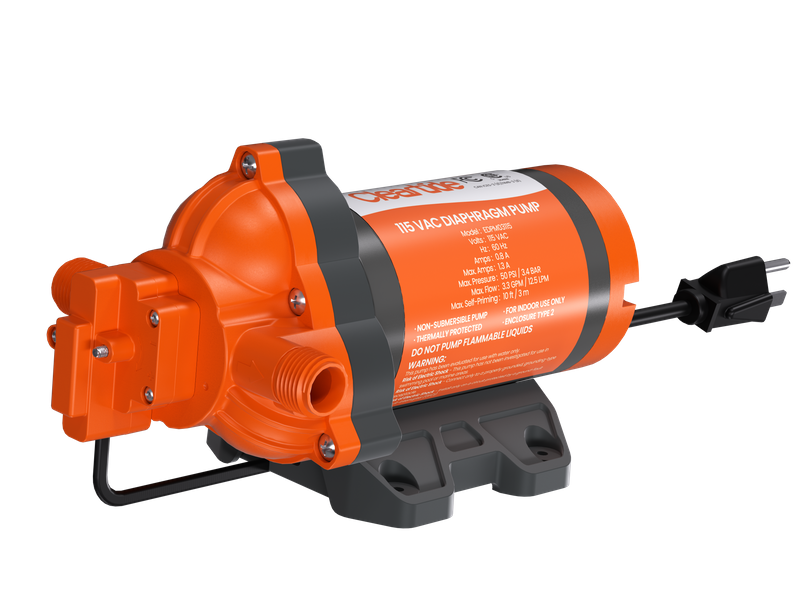

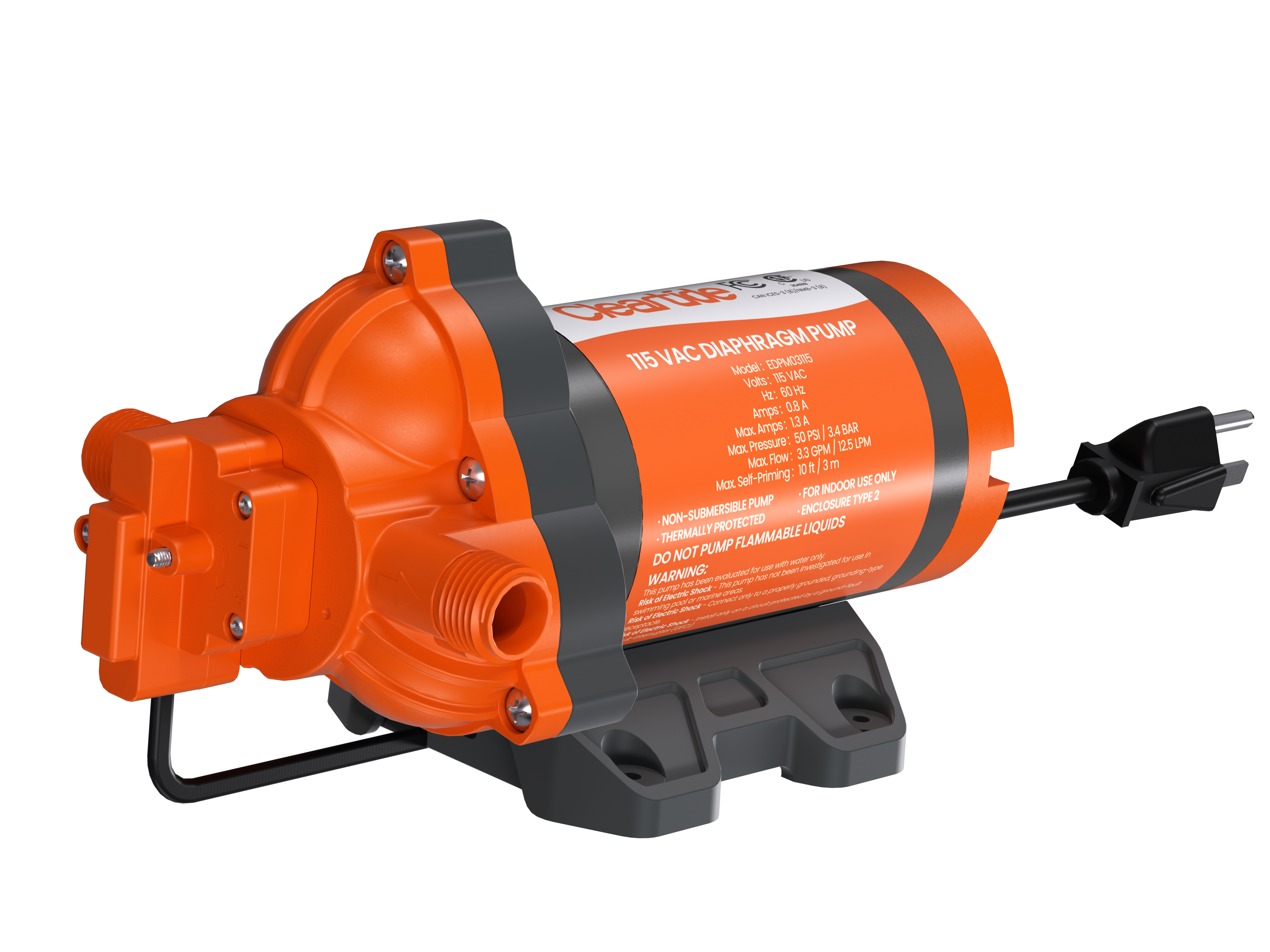

| Model | EDPM0312 | EDPM03115 | ||||||
| Applicable Ambient Temperature | 0°℃-40℃ | |||||||
| Max.Inlet Temperature | 60℃ | |||||||
| Intake/Discharge Size | 1/2”pipe thread | |||||||
| Volts | 12V DC/115VAC(Customizable) | |||||||
| Max.self-Priming | 3m | |||||||
| Max.Pressure | 3.4 Bar | |||||||
| Max.Flow | 12.5 LPM | |||||||
| Number of Chambers | 3 | |||||||
| Amps | 4.0 A | 0.8 A | ||||||
| Max.amps | 7.5 A | 1.3 A | ||||||
| Product Weight | 2.55 kg | 2.7kg | ||||||
| Pump Dimension | 222×131×125.5 mm | 227x131×125.5 mm | ||||||
